Anti-static Vinyl Flooring Roll

Kenex Electrico

30 colors
Total thickness 2.0mm

Contact an expert

Technical specifications

Product Description

Vinyl roll
Expand to view more product features.

Homogeneous vinyl is made of one single layer that offers a wide choice of natural colors. It is incredibly durable and stain resistant which makes it a great flooring choice for heavy traffic areas especially recommended for applications in healthcare and education.

KENEX ELECTRICO ESD Control Homogeneous Vinyl Flooring (2.0mm)

KENEX ELECTRICO is professional homogeneous ESD anti-static PVC sheet flooring, divided into Static-Conductive and Static-Dissipative two categories. Standard roll size: 2.0mm × 2m × 20m. Full color ranges including KN-C600/C900 conductive series, KN-D700/D800 dissipative series, with KN-C601 available in stock.

Anti-static Structure & Principle

Carbon granules inside the sheet connect the wear layer and conductive backing, matched with conductive underlayment to maintain stable surface resistance after installation. Static dissipative version resistance range: 1.0×10⁶~1.0×10⁹Ω, delivers permanent static protection without performance degradation for medical & precision electronics sensitive areas.

Core Advantages

Heavy-duty durability: Excellent wear, scratch and stain resistance, long service life for high-foot-traffic zones;
Eco & fire safety: Bfl-s1 fire classification, ultra-low formaldehyde & TVOC emission, SGS non-toxic certified;
Multi-functional performance: Anti-slip, impact sound absorption, antibacterial, non-directional grain for decorative appearance;
Low maintenance: Dense stain-proof surface, easy daily water cleaning, cuts long-term maintenance cost;
Stable installation: Special conductive backing prevents dimensional shrinkage & deformation.

Compliance Standards

EU ISO 10784 / EN 685, Chinese GB 18586, GB 8624-2012, SJ/T11236-2020 ESD industry standard, fire grade B1-S1, impact sound insulation ≥6dB.

Application Scenarios

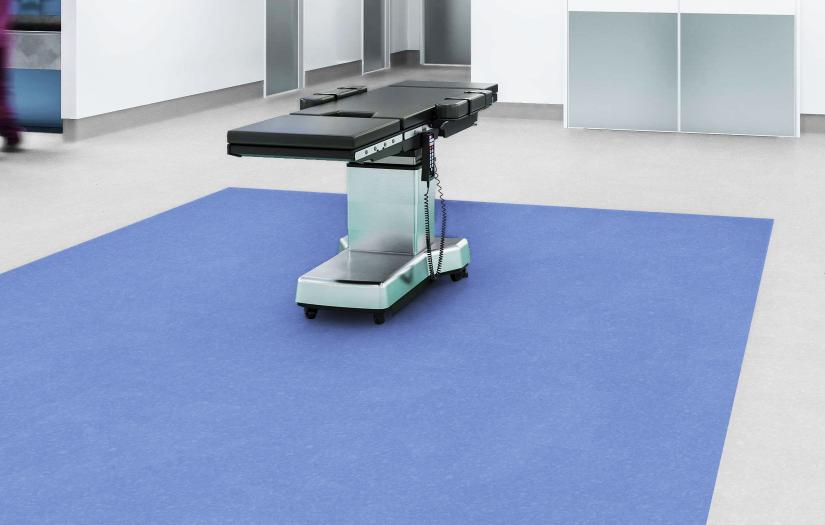

Operating theatres, ICU wards, clean wash rooms, biological laboratories, data centers, precision electronics manufacturing workshops and other sensitive environments requiring strict anti-static, cleanroom & fire safety performance.

Order Terms

MOQ: 500 SQM per color decor; color samples are for reference only, slight color difference exists between sample and finished product; all technical data are standard lab test results, custom technical indicators negotiable upon special demand.

Features

Excellent Anti-Static Performance: Utilizes conductive materials and special coatings to rapidly dissipate static electricity, with stable resistivity that prevents electrostatic accumulation.

Permanent and Stable Performance: The anti-static function of certain materials (e.g., PVC) is permanent, resistant to degradation from aging or wear.

High Load-Bearing and Wear Resistance: Offers exceptional load-bearing capacity and durability, suitable for high-traffic environments.

Easy Cleaning and Maintenance: Smooth surface with strong stain resistance for easy cleaning; certain materials can be sanded and restored.

Aesthetic Appeal: Available in various colors and patterns, featuring a marble-like appearance for excellent decorative effect.

Fire and Moisture Resistance: Provides good fire resistance (Class A/B1) and moisture-proof performance.

Eco-Friendly and Safe: Some products are free of radioactive elements, and the conductive network prevents harm to humans from electrostatic discharge.

Application Scenarios: Computer rooms, communication equipment rooms, cleanrooms, microelectronics workshops, laboratories, operating rooms, banks, post and telecommunications offices, etc.

Color Chart

Technical Data

Expand to view the main technical parameters.

DESCRIPTION

DESCRIPTION	STANDARD	UNIT	RESULT
Type of floor covering	ISO 10581/EN 649	-	ESD Control Vinyl Flooring
Total thickness	ISO 24346/EN 428	mm	2
Width of sheet	ISO 24346/EN 426	m	2
Length of sheet	ISO 24346/EN 426	m	20

CLASSIFICATION

CLASSIFICATION	STANDARD	UNIT	RESULT
European classification	ISO 10784/EN 685	class	34-43
Reaction to fire	EN 13501-1	class	Bfl-s1
Reaction to fire	GB 8624-2012	-	B1(B-s1,t0)
Toxic testing	GB 18586-2001	-	Qualified
Slip resistance	DIN51130	class	R9

PERFORMANCES

PERFORMANCES	STANDARD	UNIT	RESULT
System resistance	DIN 51953	Ω	Static Dissipative 1.0×10⁶～1.0×10⁹ StaticConductive 1.0×10⁴～1.0×10⁶
System resistance	SJ/T11236-2020	Ω
Decay period of static voltage	GJB3007A-2009	S	≤2
Starting voltage	SJ/T10694-2006	V	IVI<100
Amount of wear	SJ/T11236-2020	g/cm²	≤0.02
Combustion property	GB8624-2012	-	B1-S1,t0
Combustion property	SJ/T11236-2020	-	V-0
Smoke production	GB8624-2012	X min	≤750%
Smoke toxicity	GB8624-2012	-	ZA1
Formaldehyde emission	EN717-1	-	No N.D detected
Residual indentation	SJ/T11236-2020	mm	≤0.15
Effect of Castor chair	EN425	-	no delamination no cracks
Dimensional stability	EN434	%	≤0.40
Rate of size change at heating	SJ/T11236-2020	%	≤0.25
Color fastness	ENISO 105 B02	-	≥6
Impact sound absorption	ENISO 0717/2	dB	approx 6
Resistance to stalning	GB/T 11982.2-2015	-	Not affected
Logistics information	2mx20mx2.0mm 16 Rolls/Pallet 10Pallets/6400m²
